Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity.
The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized.
Features:
- Aggressive appearance
- Increased ground clearance
- HD 0.25 inch thick crossmember
- Lower control arms feature high clearance design
- Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
- Extreme travel long arms keep optimum alignment and give optimum articulation
- X-Flex control arm features:
- Clevite brand OEM style rubber bushings
- Flex joints feature a massive 2.5 Inch diameter body and 1.25 inch thread
- Fully greasable
- Upper joints pivot up to 20 degrees
- Lower joints pivot up to 35 degrees
Notes:
- Does Not fit AWD models.
- Transfer case skid plate Will Not fit models equipped with 249 transfer case.
- Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
- Models equipped with a CV style front driveshaft may result in driveshaft vibration.
- If this occurs, replacing the driveshaft, axle yoke and, or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
- CV Driveshaft Example
Details:
- Sold As Kit
- Material Forged Steel
- Drive 4WD
- Lift Height 4.0 inch
- Mount Style Bolt On
- Thickness 0.25 inch

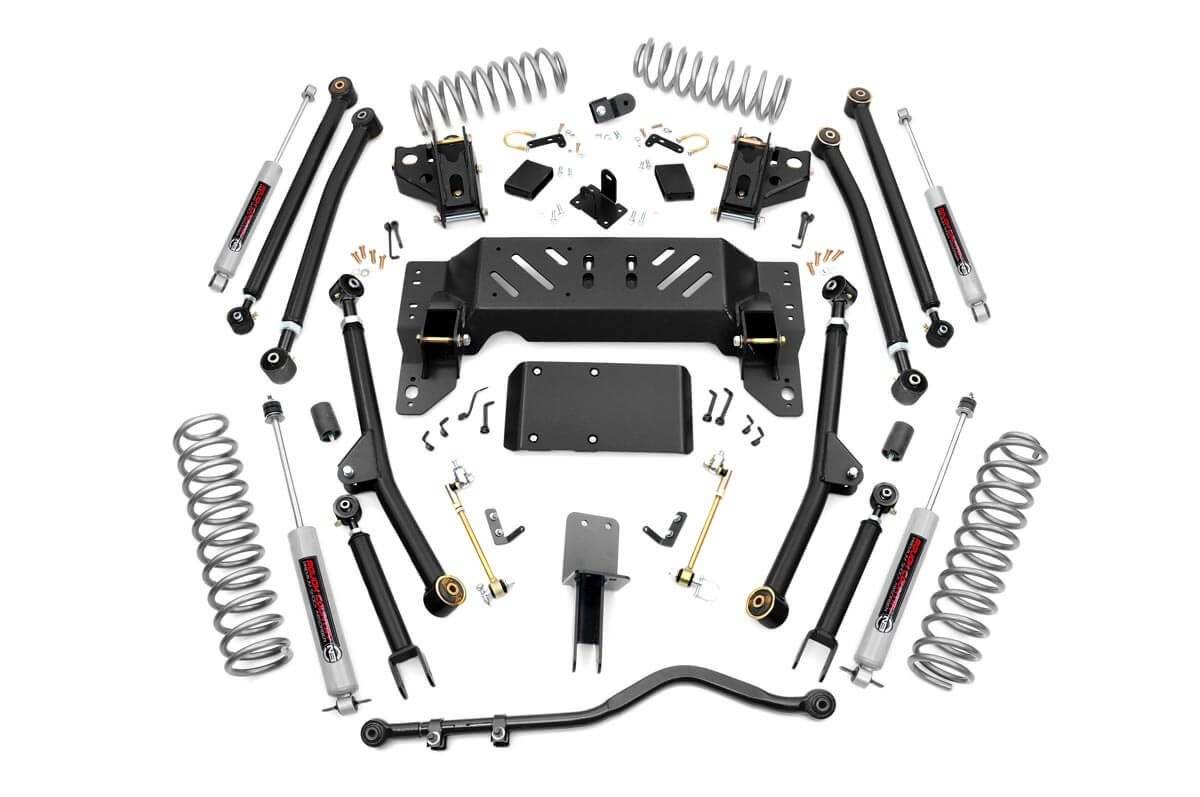

- Front Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Crossmember Transfer case skid plate Sway-bar quick disconnects Forged Adjustable track bar Track bar bracket 3 Inch Bumpstops Hardware
- Rear Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Long arm frame brackets Track bar bracket Bumpstop brackets Brake line brackets Hardware
