This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors.
A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O. E. caster angles.
A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is Required when running 37in tires.
Features:
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster.
- Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved V2 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes: Does Not fit dually models. If vehicle is equipped with rear overload leafs, they will need to be removed.
Details:
- Sold As Kit
- Drive 4WD
- Max Tire 37.0 inch
- Lift Height 6.0 inch
- Mount Style Bolt On

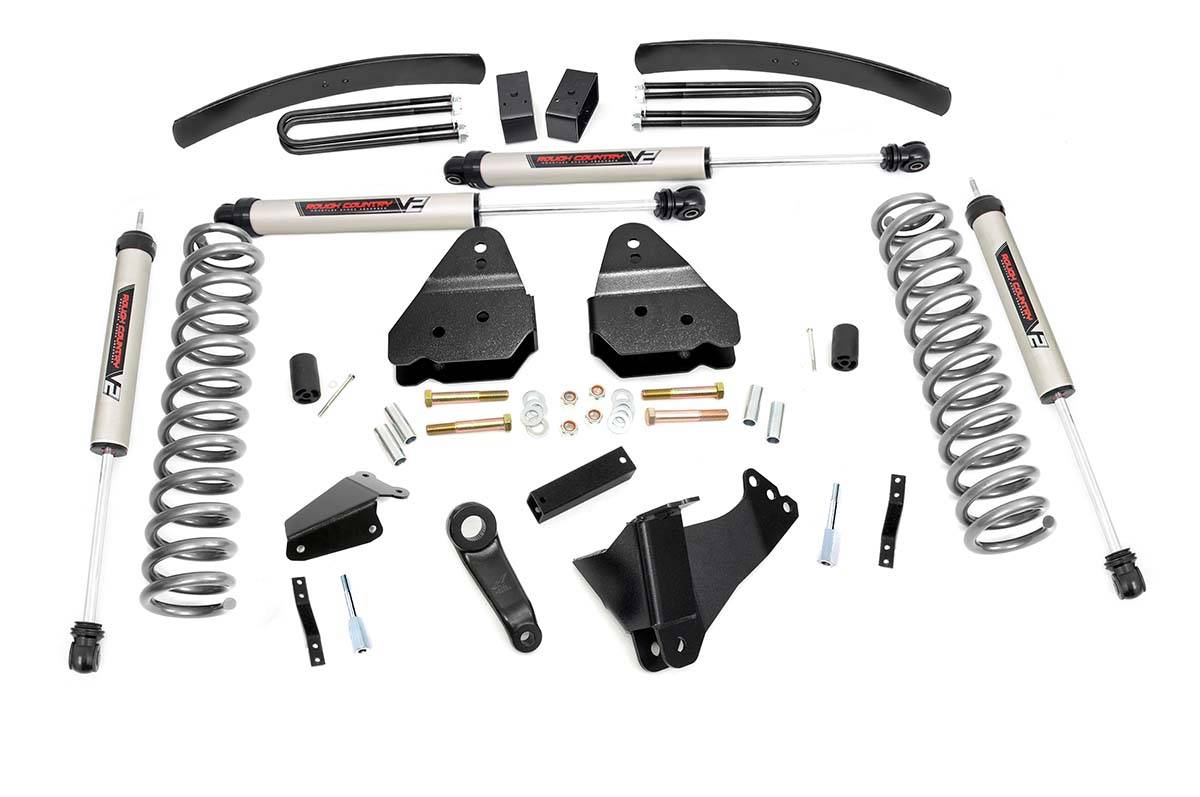

- Front Components Lifted coil springs Radius arm drop brackets Sway-bar link extensions Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
- Rear Components 3.0 inch lift blocks Add-a-leafs Carrier bearing drop bracket U-bolts Hardware
