BDS steps up the performance and capability of the 2016-2023 Toyota Tacoma 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility.
These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- Will not work on TRD Pro Models
- Minor welding required
- Requires frame bracket modification
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Can not use 17 inch wheels.
- Fox Shocks required for 2013-2020 models
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

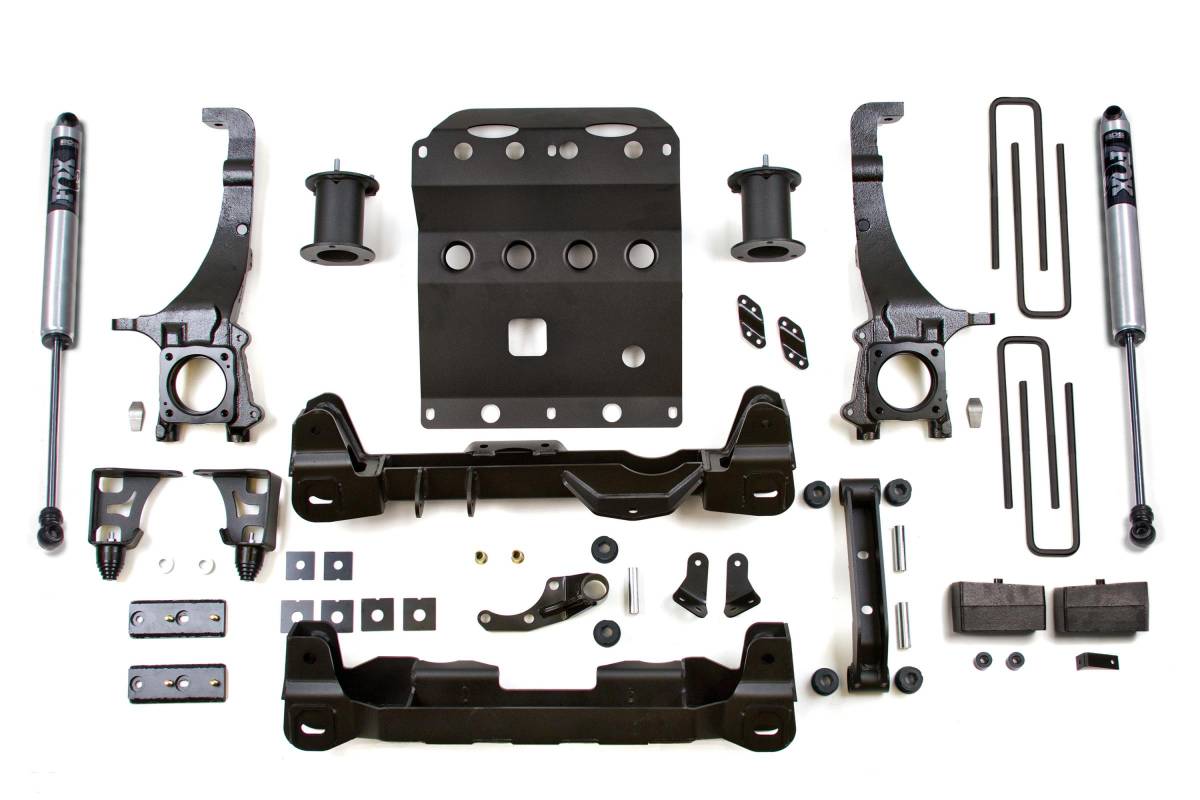

Kit Components:
- Includes one BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit, UPC Code 658848614455
- Includes one BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4, UPC Code 658848616176
- Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
- Includes one BDS028612, 2016-2023 Toyota Tacoma Front Box Kit 3 of 4, UPC Code 658848616244
- Includes one BDS028621, 2016-2023 Toyota Tacoma Front Box Kit 2 of 4, UPC Code 658848616251
- Includes two FOX98224954, Fox 2.0 Shock 26.15 x 16.05 x 2- S50/EB1
