Take your Chevy Silverado and GMC Sierra 1500 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
Dual Speed Compression Adjust Adjustment
FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Stock
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 0 inch
- Requires a maximum of 5.5 inch BS Wheel for Tire clearance to the upper ball joint when used on 2-3.5 inch kits
- Can be used on Trail Boss / AT4 models, but will net 0 inch lift
- All aftermarket wheels should be test fit prior to mounting the Tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
- Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
- Will not fit models equipped with ARC
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Rear Shock Option
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Tire Size: 295 / 65 Tire Size 2: 295 / 60 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.5

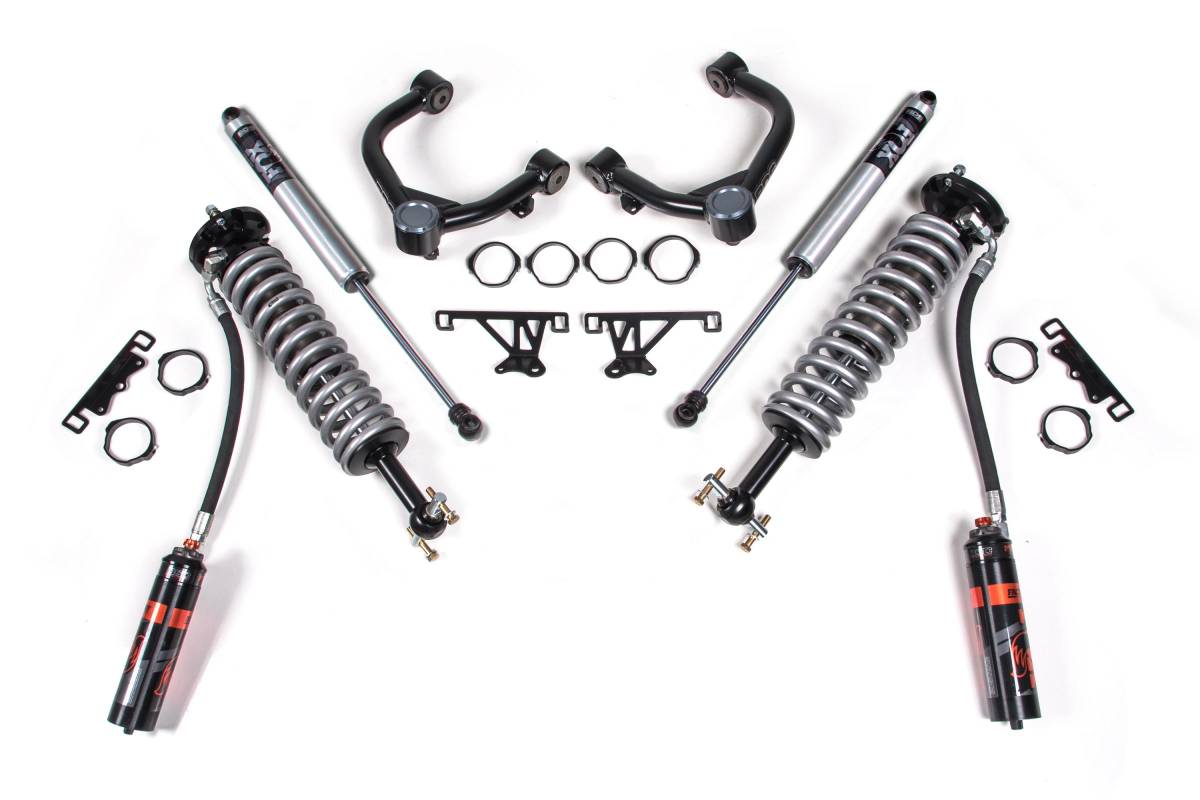

Kit Components:
- Includes one BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 inch and 6 inch Lift Applications Only, UPC Code 658848618941
- Includes one FOX88306157, Kit: 2019-2024 GM 1500 Front Coilover, 2.5 Series, AL, R/R, Non-TB/Non-AT4 0-2 inch Lift, TB/AT4 No Lift, UPC Code 711745603936
- Includes one FOX88326060, Kit: 2019-2024 GM 1500, Rear, 2.5 Truck FRS, R/R, 0-1.5 inch Lift, Dual Speed Compression Adjust, UPC Code 711745603950
