2 Inch Lift Kit FOX 2.0 Snap Ring Strut Silverado/Sierra 1500 19-24 4WD

BDS770FSR
2 Inch Lift Kit FOX 2.0 Snap Ring Strut Silverado/Sierra 1500 19-24 4WD
Availability: Drop-shipped items are subject to availability at the MFR.
Shipping: DROPSHIP FROM BDS
Pricing: $1,663.21
Qty:
Free Ground Shipping for orders over $150.00 to Lower 48 States (some exclusions apply)

Description

Built to outperform, upgrade your Chevy Silverado and GMC Sierra 1500 with this 2-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The Internal Floating Piston eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

  • Front Lift Method: Coil-Over
  • Rear Lift Method: Stock
  • Shocks Included: Yes
  • Front Lift Height: 2 inch
  • Rear Lift Height: 0 inch
  1. Requires a maximum of 5.5 inch BS Wheel for Tire clearance to the upper ball joint when used on 2-3.5 inch kits
  2. Can be used on Trail Boss / AT4 models, but will net 0 inch lift
  3. All aftermarket wheels should be test fit prior to mounting the Tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  4. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
  5. Will not fit models equipped with ARC
  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series Internal Floating Piston rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100 percent Bolt on installation

Tire Size: 295 / 65 Tire Size 2: 295 / 60 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.53

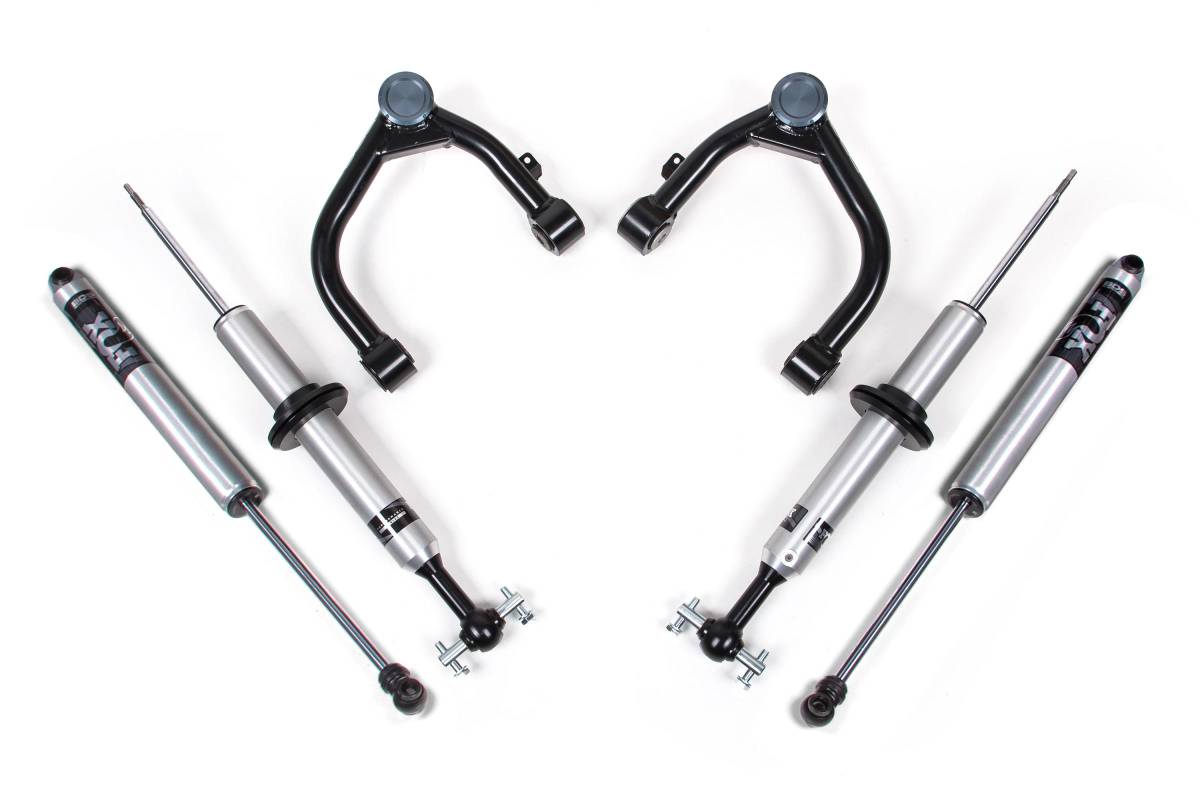

Kit Components:

  • Includes one BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 inch and 6 inch Lift Applications Only, UPC Code 658848618941
  • Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
  • Includes two FOX98562012, 2019-2024 GM 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.2 inch, 0-2 inch Lift, UPC Code 711745591271

Details

  • BDS770FSR
  • BDS770FSR
  • BDS Suspension
  • Drop-shipped items are subject to availability at the MFR.
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 49.2 lbs.
  • W12.5000” x H9.5000” x L16.5000”
  • Free Ground Shipping for orders over $150.00 to Lower 48 States (some exclusions apply)
  • DROPSHIP FROM BDS
