Increase ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
Easy, 100 percent Bolt-on installation
Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
Steel lift blocks with built-in bump stop provide level stance from front to rear
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- (Trimming may be required)
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Rear Lift Option
Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Front Lift Method: Coil Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch

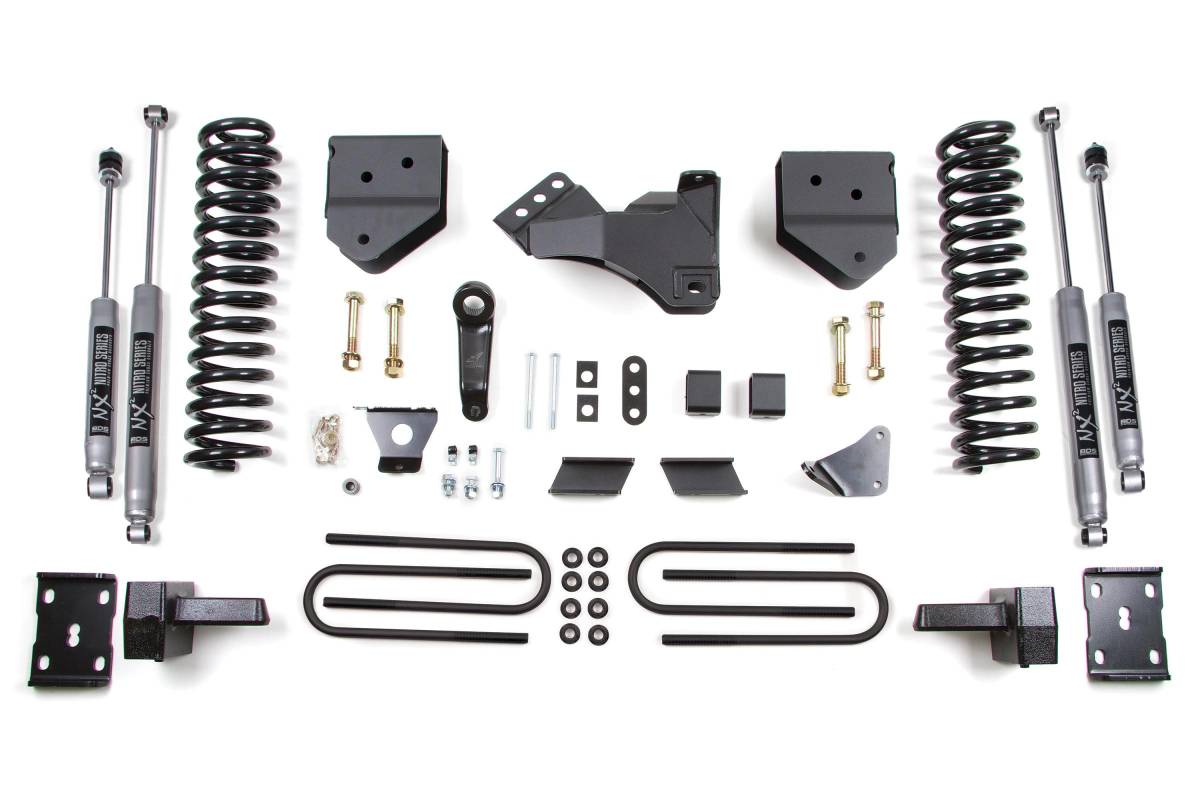

Kit Components:
- Includes one BDS013413, 11 Ford F250/350 4 Inch Box kit, UPC Code 658848613441
- Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625
- Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
