Built to outperform, BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits with FOX 2.5 Coil-over shocks.
These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger truck up right with clearance for up to 35 inch tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection.
Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
DSC Adjustment
FOX 2.5 coil-overs are available with standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad.
Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles Cast Steel
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
- FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires & Wheels
- (Trimming may be required)
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

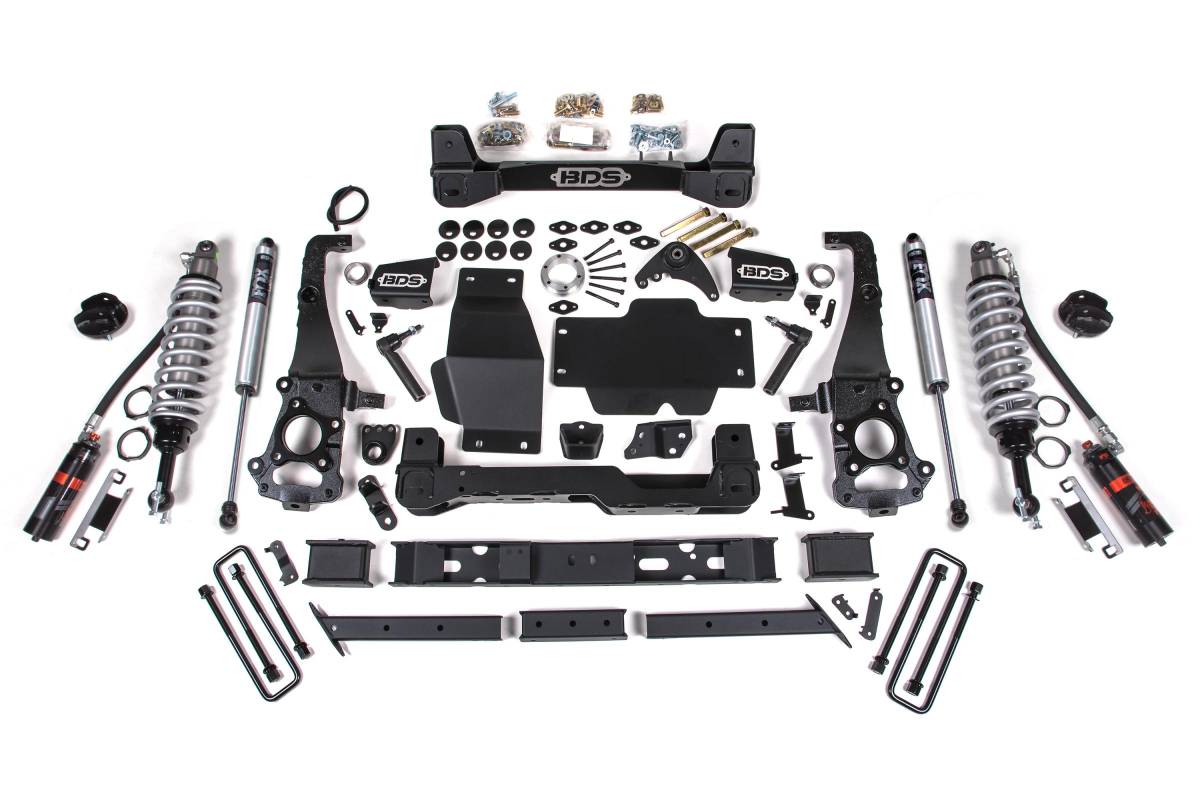

Kit Components:
- Includes one BDS023662, 2019-2023 Ford Ranger Front Box Kit (1of2), UPC Code 658848616015
- Includes one BDS023663, 2019-2023 Ford Ranger Front Box Kit (2of2), UPC Code 658848616022
- Includes one BDS023669, 2019-2023 Ford Ranger 6 inch Rear Box Kit, UPC Code 658848616046
- Includes one BDS023674, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver, UPC Code 711745611955
- Includes one BDS023675, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger, UPC Code 711745611962
- Includes one BDS123600, 2019-2023 Ford Ranger Coilover Mount Box Kit, UPC Code 711745604339
- Includes one FOX88406262, Kit: BDS 19-20 Ford Ranger, Front, 2.5 FRS, R/R, 4.4 inch, 6 inch Lift, Dual Speed Compression Adjust, UPC Code 814897013476
- Includes two FOX98224821, Fox 2.0 Shock 26.85 x 16.75 EB1/EB1
