Build the ultimate Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
- Front Lift Method: Coil-Over
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 1 inch
- Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
- Larger Tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the Tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- Trucks without top-mounted overload springs require (x4) UBT4031 available to purchase separately.
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/55 hrs
- Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
- Larger Tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the Tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- Trucks without top-mounted overload springs require (x4) UBT4031 available to purchase separately.
Moderate 30mm Socket, Die Grinder, Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

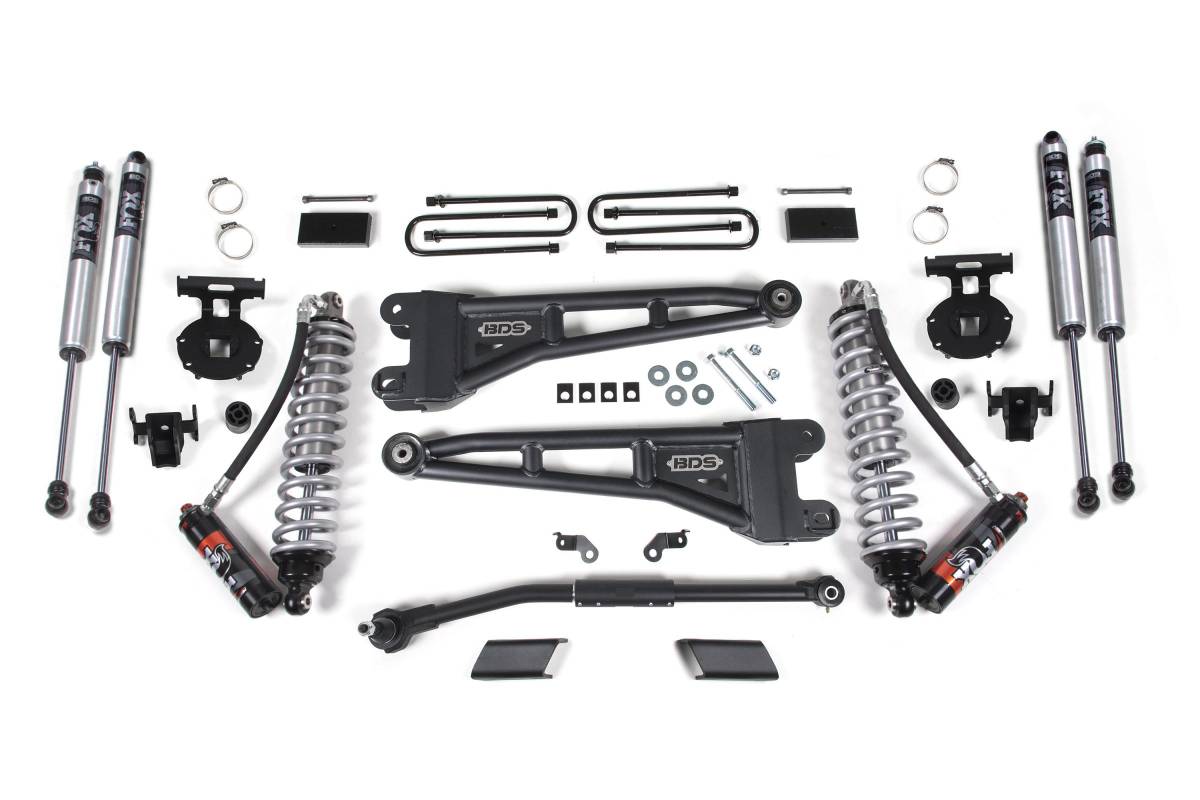

Kit Components:
- Includes one BDS013108, 2017-2024 F250/F350 1 inchRear Block Kit, UPC Code 658848613052
- Includes one BDS013261, 2020-2024 F250/350 2.5 inch Front Box Kit, UPC Code 658848613236
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
- Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
- Includes one FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
- Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
- Includes two FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
