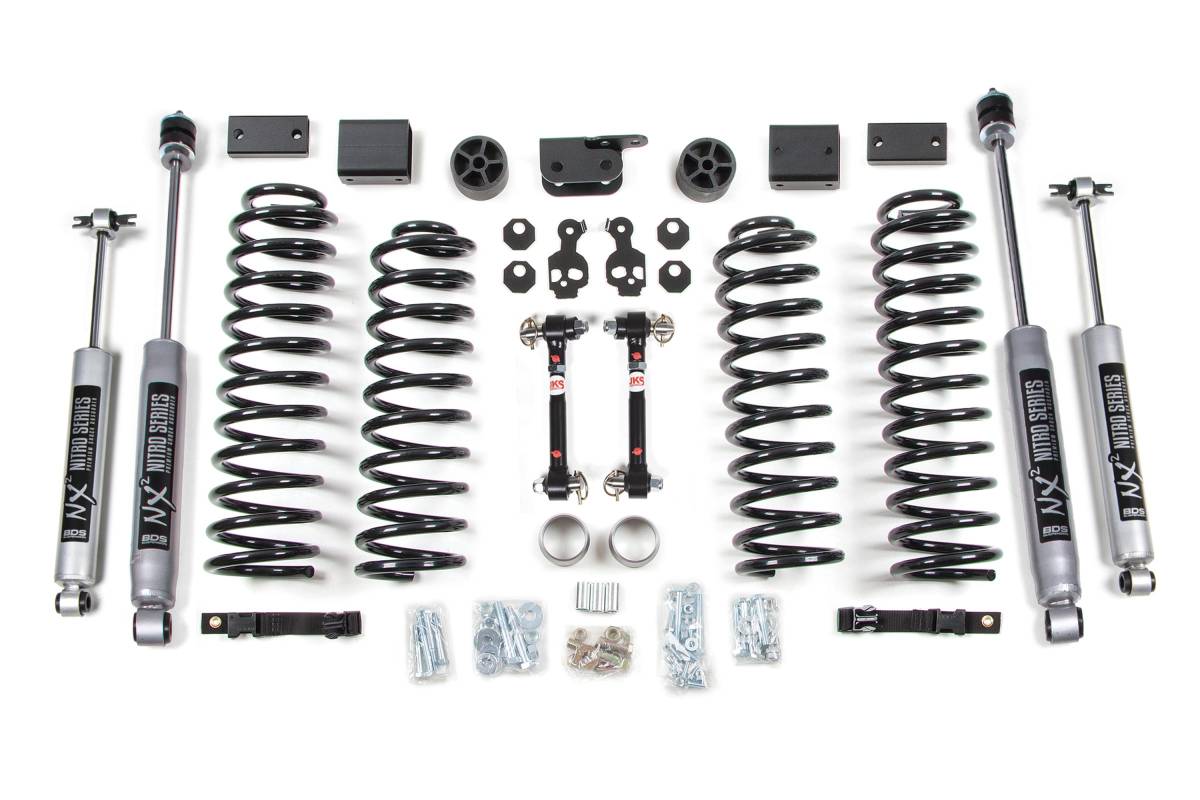

Upgrade the ride and style of your 2012-2018 Jeep Wrangler JK 2 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.
In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 3 inch
- Removing the OE spring isolators will result in a 1 Inch Lift if desired.
- 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
- This kit is FMVSS No.126 Compliant
- This kit is right hand drive compatible.
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 35 inch Tires
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Sway Bar Link Option Disconnects
- Gain 30 percent more axle articulationl by disconnecting your front sway bar
- Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
- Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
- Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
Kit Components:
- Includes one BDS014310, Jeep Wrangler JK 3in Box Kit, UPC Code 658848614028
- Includes one BDS034209, 2007-2018 Jeep Wrangler (JK) 2 Door /3in 4 Door/2in Rear Coil Springs, UPC Code 658848616701
- Includes one BDS034312, 2007-2018 Jeep Wrangler (JK) 2 Door 3in Front Coils, UPC Code 658848616787
- Includes one BDS124314, 2012-18 Jeep Wrangler JK Exhaust Extension Kit, UPC Code 711745605015
- Includes one FOX88326091, Kit: 07-18 Jeep Wrangler JK Front, 2.5 Truck Fox Performance Elite Series, R/R, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
- Includes one FOX88326092, Kit: 07-18 Jeep Wrangler JK Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2.5-4 inchРЎСљ Lift, Dual Speed Compression Adjust
