Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes 3 inch Pro-Ride coil springs capable of full coil bind and 2 inch bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links.
In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3 inch lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 3 inch
- This kit is FMVSS No.126 Compliant
- This kit is right hand drive compatible.
- ProRide coil springs offer improved ride quality and more articulation
- Sway bar quicker disconnects and extended rear link for improved offroad flex
- Rear track bar bracket repositions rear axle under vehicle
- Lower cam locks to correct caster for alignment
- Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
- Allows clearance for 35 inch Tires
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Fixed Links
- Required for use on Rubicon models with electronic disconnect.
- Improves handling with proper sway bar operating angle
- Heavy-duty steel construction with zinc finish
- Polyurethane hourglass bushings for long life and quiet operation

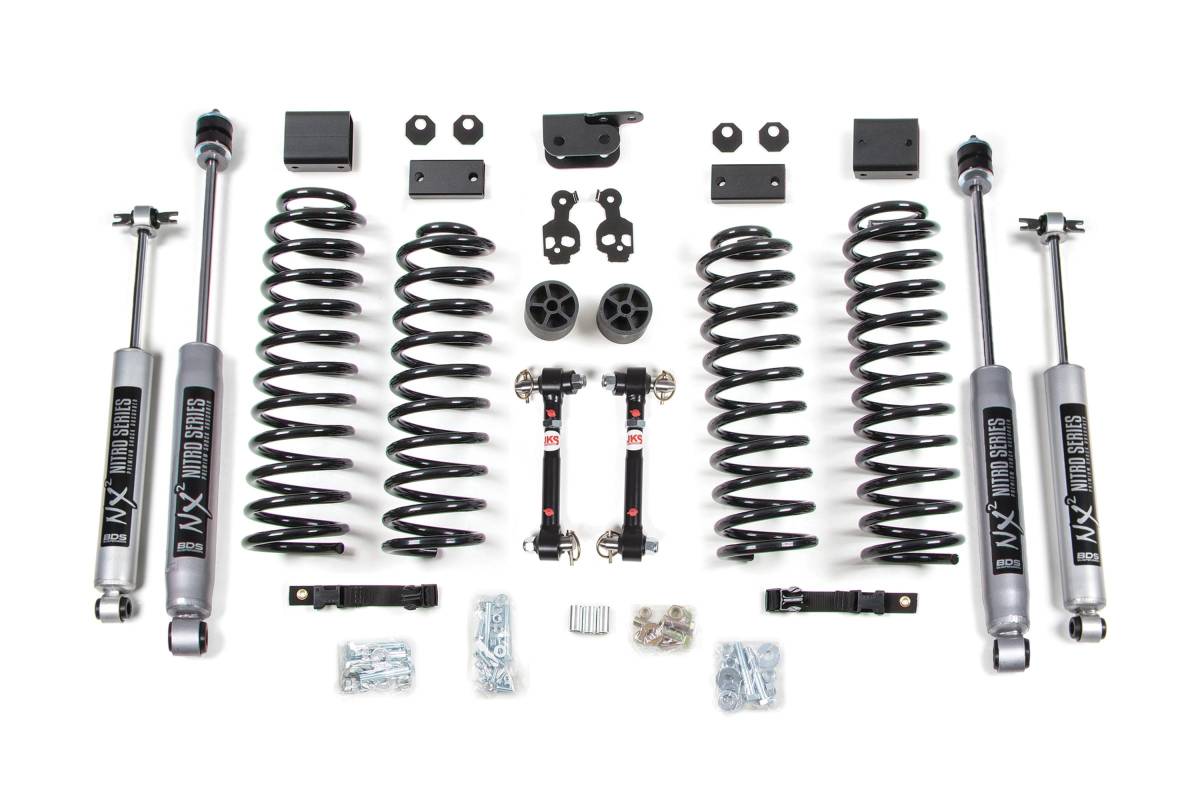

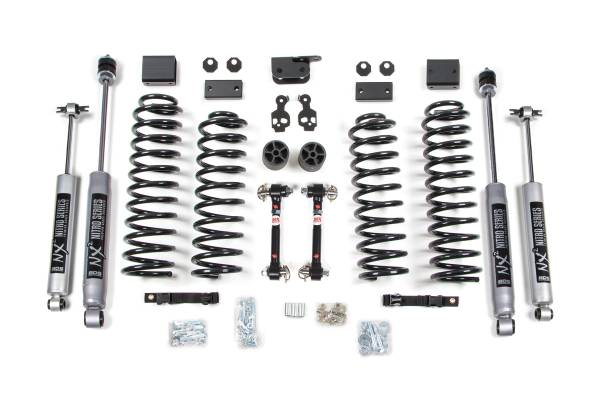

Kit Components:
- Includes one BDS014311, Jeep Wrangler JK Rubicon 3in Box Kit, UPC Code 658848614035
- Includes one BDS034311, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Front Coil Springs, UPC Code 658848616770
- Includes one BDS034319, 2007-2018 Jeep Wrangler (JK) 2 Door /4 Inch 4 Door/3in Rear Coil Springs, UPC Code 658848616794
- Includes two FOX98224921, Fox 2.0 Shock 25.12 x 15.55 x 2- S50/EB1
- Includes two FOX98224951, Fox 2.0 Shock 26.35 x 16.75 x 2-BP18/EB1
