Take your 2016-2023 Toyota Tacoma 4WD truck to the next level with a 6-inch suspension lift kit with FOX 2.5 Coil-Over shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
Dual Speed Compression Adjust Adjustment
FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad.
Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 4 inch
- Will not work on TRD Pro Models
- Minor welding required
- Requires frame bracket modification
- Strut compressor required for installation
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Can not use 17 inch wheels.
- Fox Shocks required for 2013-2020 models
- FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series Internal Floating Piston gas rear shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Coil-Over Option
FOX 2.5 Coil-Overs with Dual Speed Compression Adjust Adjuster
All the FOX Coil-Over Advantages Plus:
- Dual Speed Compression (Dual Speed Compression Adjust) Adjuster
- Increases both low and high-speed compression levels up to 25 percent
- Easy twist knobs for Low-Speed and High-Speed Compression adjustment
- Provides added control and comfort for on-road use
- More aggressive damping for use off-road
Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

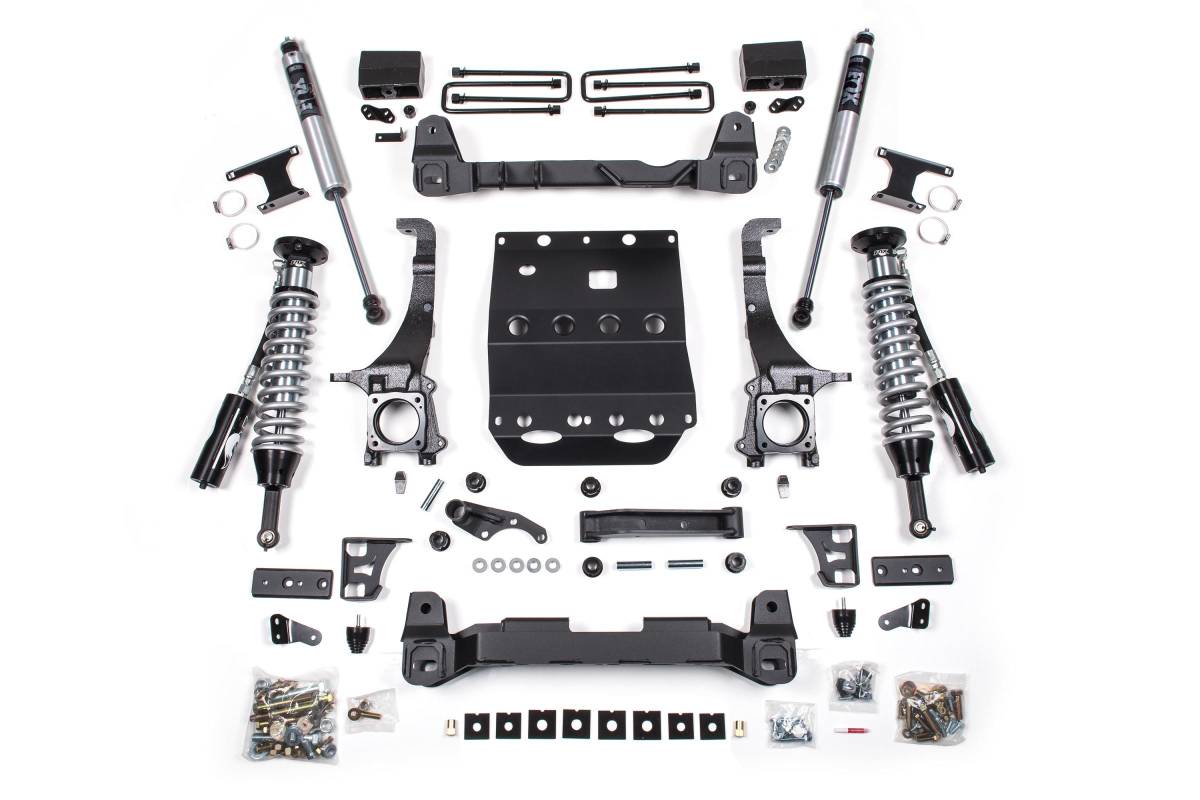

Kit Components:
- Includes one BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit, UPC Code 658848614479
- Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190
- Includes one BDS028612, 2016-2023 Toyota Tacoma Front Box Kit 3 of 4, UPC Code 658848616244
- Includes one BDS028621, 2016-2023 Toyota Tacoma Front Box Kit 2 of 4, UPC Code 658848616251
- Includes one FOX88306048, Kit: BDS 05-23 Tacoma Front Coilover, 2.5 Series R/R 6 inch, Dual Speed Compression Adjust, UPC Code 814897013667
- Includes two FOX98224953, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
