Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
Dual Speed Compression Adjust Adjustment
FOX 2.5 coil-over Dual Speed Compression Adjust (dual speed compression) allow you adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad.
Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
- Front Lift Method: Coil-Over
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 8 inch
- Rear Lift Height: 6 inch
- FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Factory Control Arm Type Aluminum / Stamped Steel
Important: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit. Be sure to verify which factory control arms your truck has before ordering
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 22 x 10 Back Spacing: 5.5/5.5

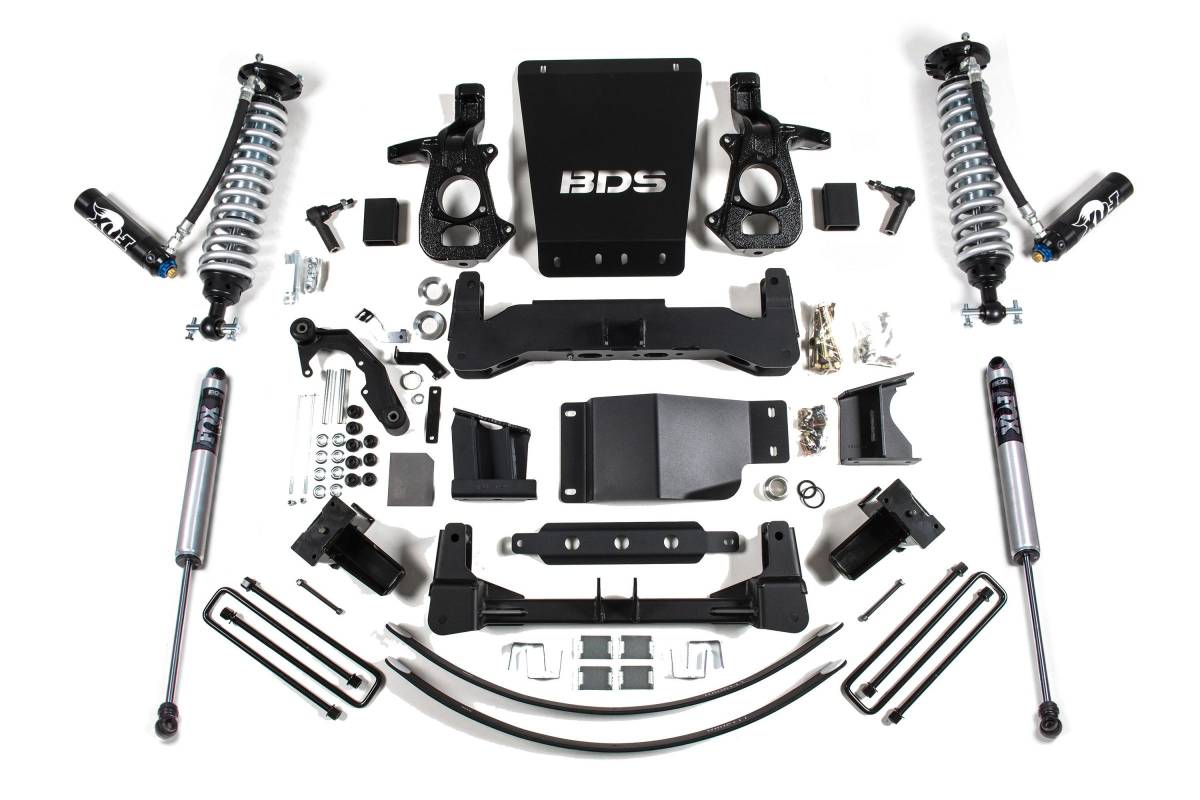

Kit Components:
- Includes one BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit, UPC Code 658848614790
- Includes one BDS021800, 14-up Chevy 1500 Knuckle-DRV-stamp/alum, UPC Code 658848615247
- Includes one BDS021801, 14-up Chevy 1500 Knuckle-PASS-stamp/alum, UPC Code 658848615254
- Includes one BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2, UPC Code 658848615261
- Includes one BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2, UPC Code 658848615278
- Includes one FOX88406227, 07-up Chevy 1500 8 inch Front Coilover Kit - Dual Speed Compression Adjust Option
- Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
